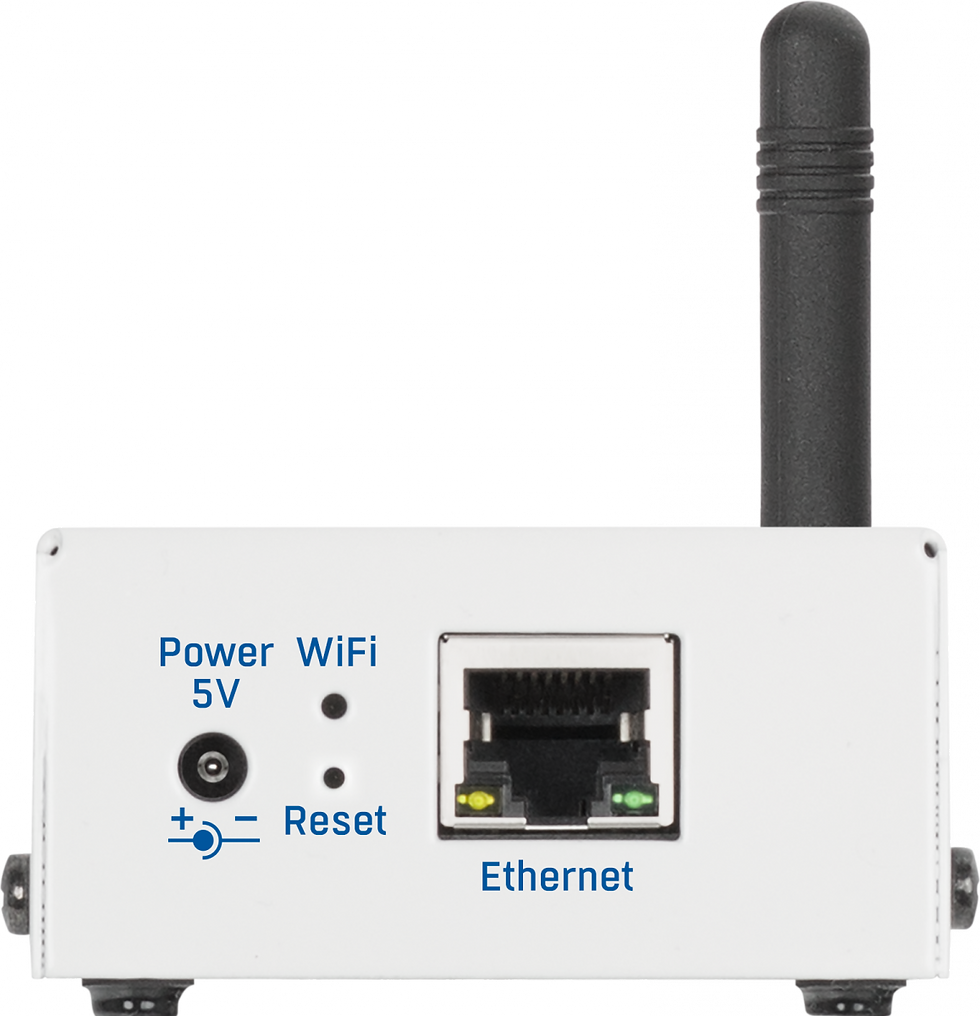

Hwg SD-2xOUT set

Hwg SD-2xOUT set

2x DI (Digital Input) with S0 pulses to the Portal


SD-2xIn is a device for connecting to the Portal door contacts, PIR motion detectors, or smoke (gas) detectors with a dry contact output. 2x DI (Digital Input) on the SD-2xIn device allows connecting 2 external independent detectors. Each DI can also count S0 pulses, so even Water / Gas / Electricity meters with pulse outputs can be connected.

It's a portal device, no on-site device configuration is required, just plug RJ45 (WiFi network setup can use built-in web server).
The device has to be connected to the SaaS / on-premise Portal (SensDesk Technology). Portal is sending SMS alerts, Voice calls or email alerts (door opened / pulse counter over limit). The Portal also generates periodical PDF reports or shares sensor data over SNMP or XML APIs. Mobile App can show data from your user account on the mobile phone in your pocket or on the wall display.

  • 2 independent DI (Digital Inputs) which count pulses (S0 counter) to the Portal.
  • Device is connected to the portal via LAN / WiFi
  • Portal is mandatory (SensDesk Technology based portal - SaaS / On-premise)
  • Portal services: Graphs, PDF reports, Email & SMS Alerting, SNMP, XML Open API
  • Default portal: (free service)
  • Power: Power adaptor (5V) or PoE
  • Metal housing, DIN and rack mount available
  • WiFi network setup: Embedded WEB server
Applications and usage:
  • Remote monitoring of simple detectors (door contact, smoke, power)
  • Connecting 3rd party devices to the Portal (via relay outputs)
  • Metering water consumption (meter with S0 pulse output)
  • Metering electricity (kWh) consumption from meter with pulse output
