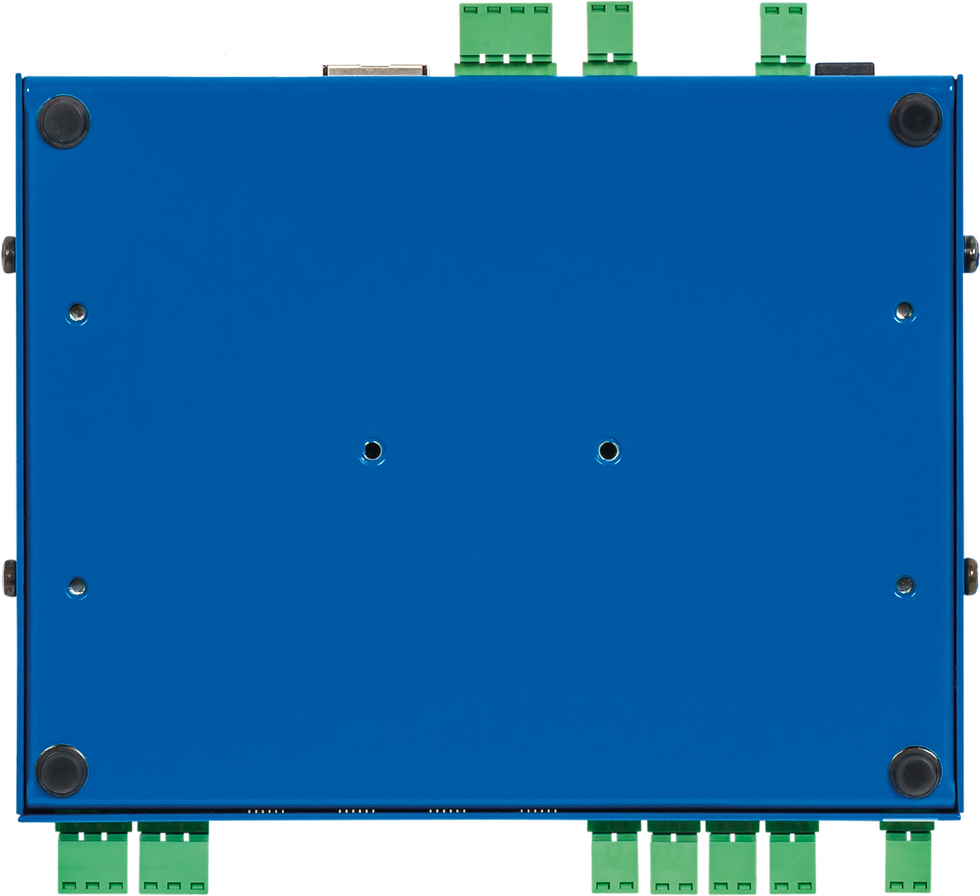

Hwg Perseus 140

Perseus Monitoring 140



Perseus Monitoring 140 is a solution for remote monitoring on site with LAN. External sensors (up to 1000 variables) - 4x RJ11 port (1W-UNI) or 1x RS-485 (Modbus/RTU). Multiple DI / DO (relay) and a WLD port.

Perseus 140 combines data from external physical sensors / detectors with data from other HWg devices connected via LAN. Local conditions, Lua scripting, calendar or periodic scheduler help to analyze the measured data.

Email or SNMP Trap alert can be sent from the Perseus device. Measured values are available via Open API (XML, Modbus/TCP, MQTT).

Perseus Monitoring 140 can be connected to the Portal (SensDesk technology). Together with the Portal it’s a powerful solution for professional applications with Graphs, SNMP and Device Invalid Alert.

A unique feature of Perseus products is the Meters API. Perseus can read over LAN sensor values from other devices (e.g. STE2 R2) and use this data for analysis or alerting.

Features:

  • Ethernet: RJ45 (100BASE-T); WEB: Built-in web server

  • 4xRJ11 port - max. 2 external sensors 1-Wire UNI per port

  • RJ11 sensors: Temperature, Relative Humidity (Indoor / Outdoor), Voltage, Current (0-30A or 4-20mA) and much more

  • RS-485 (Modbus/RTU): 1x terminal block

  • WLD: 1 zone for external Water Leak Detection sensing cable

  • DO (Digital Outputs): 2x DO (relays)

  • DI (Digital Inputs): 4x DI (dry contact)

  • Detectors: Smoke, door contact, fan failure detector, power presence, etc

  • Device Alerts: SNMP trap, email, (SMS / Calls with external SMS GW)

  • Portal Alerts: Email, SMS / Calls, Device Invalid Alert

  • Open API: SNMP, XML, Modbus/TCP, MQTT, BACnet

  • Professional product: IPv6, SNMP Traps, SNMP v3

  • Security: Radius - IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)

  • Meters API (LAN): HWg devices XML, Modbus/TCP, SNMP, MQTT

  • Data processing: Condition & Actions, Virtual sensors, Scheduler

  • Remote Configuration with SensDesk Technology

Applications and usage:

Typical Applications:

  • Remote machine monitoring

  • Remote environmental monitoring of warehouse / storage spaces

  • Remote monitoring of technical room (sites)

  • Remote site data concentrators of all local sensors / meters

  • Remote environmental monitoring within the cabinet or telco site

  • Pharmaceutical / warehouse environment monitoring

  • Remote base transceiver station monitoring

  • Greenhouse monitoring
